Usage Example - Operation: 'BP 3F MERGE'

Back Projection - 3D, Interpolated in Fourier space, Partial, Merge

Procedure used: bp3fpart.spi

.OPERATION: BP 3F MERGE ;   Merge partial volumes
.PARTIAL VOLUME FILES TEMPLATE: bp3fpart@* ;   Partial volumes template (input)
.FILE NUMBERS OR SELECTION DOC. FILE NAME: 1-2 ;   List of partial volumes
.SYMMETRIES DOC FILE: * ;   No symmetries file (input)
.RECONSTRUCTED VOLUME FILE: bp3fmerge ;   Complete volume (output)


Input volumes (Fourier) and weighting files do not have a meaningful display.

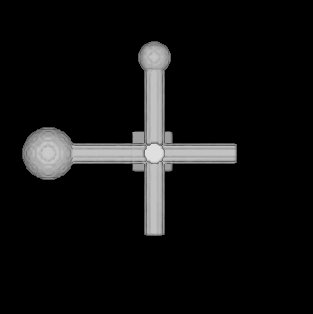

MERGED OUTPUT VOLUME
(Enlarged Surface view)
bp3fmerge
