Usage Example - Operation: 'BP 3F PART'

Back Projection - 3D, Interpolated in Fourier space, Partial

Procedure used: bp3fpart.spi

.OPERATION: BP 3F PART ;   Reconstruct partial volume
.TEMPLATE FOR IMAGE FILES: sav_pj3q_vol_ax_83_80@**;   Projection files (input)
.FILE NUMBERS OR SELECTION DOC. FILE NAME: 1-40 ;   List of projection images
.ANGLES DOC FILE: sav_angvoea_83 ;   Angles doc file (input)
.SYMMETRIES DOC FILE: * ;   No symmetries file (input)
.PARTIAL VOLUME FILE: bp3fpart@1 ;   Partial Fourier volume (output)
. ;
.OPERATION: BP 3F PART ;   Reconstruct partial volume
.TEMPLATE FOR IMAGE FILES: sav_pj3q_vol_ax_83_80@**;   Projection files (input)
.FILE NUMBERS OR SELECTION DOC. FILE NAME: 41-83 ;   List of projection images
.ANGLES DOC FILE: sav_angvoea_83 ;   Angles doc file (input)
.SYMMETRIES DOC FILE: * ;   No symmetries file (input)
.PARTIAL VOLUME FILE: bp3fpart@2 ;   Partial Fourier volume (output)

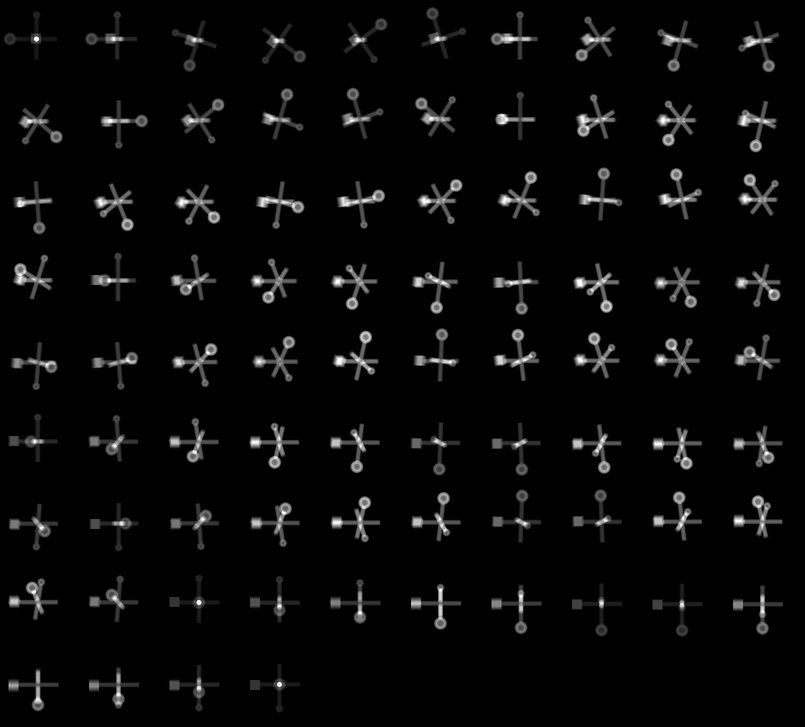

Input Images
(Enlarged)

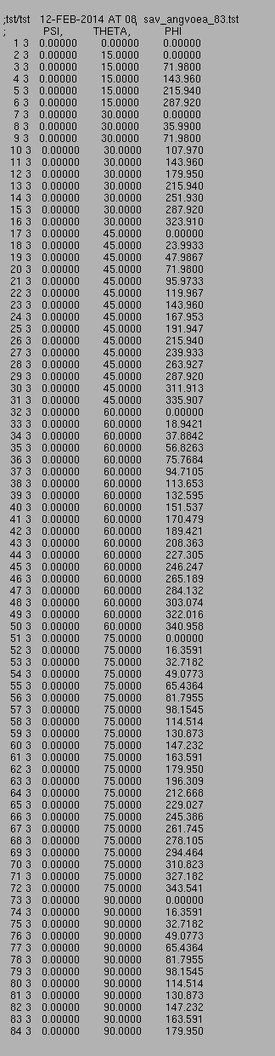

INPUT ANGLES DOC FILE
sav_angvoea_83


Output volumes (Fourier) and weighting files do not have meaningful displays.
