Usage Example - Operation: 'BP 3N'

Back Projection - 3D, Nearest neighbor Interpolated in Fourier space

Procedure used: bp3n.spi

.OPERATION: BP 3N ;   Reconstruct volume
.TEMPLATE FOR IMAGE FILES: bp_proj@** ;   Particle files
.FILE NUMBERS OR SELECTION DOC. FILE NAME: 1-84 ;   List of images
.ANGLES DOC FILE: angles ;   Angles doc file
.SYMMETRIES DOC FILE: * ;   No symmetries
.RECONSTRUCTED VOLUME FILE: bp3n ;   Output volume

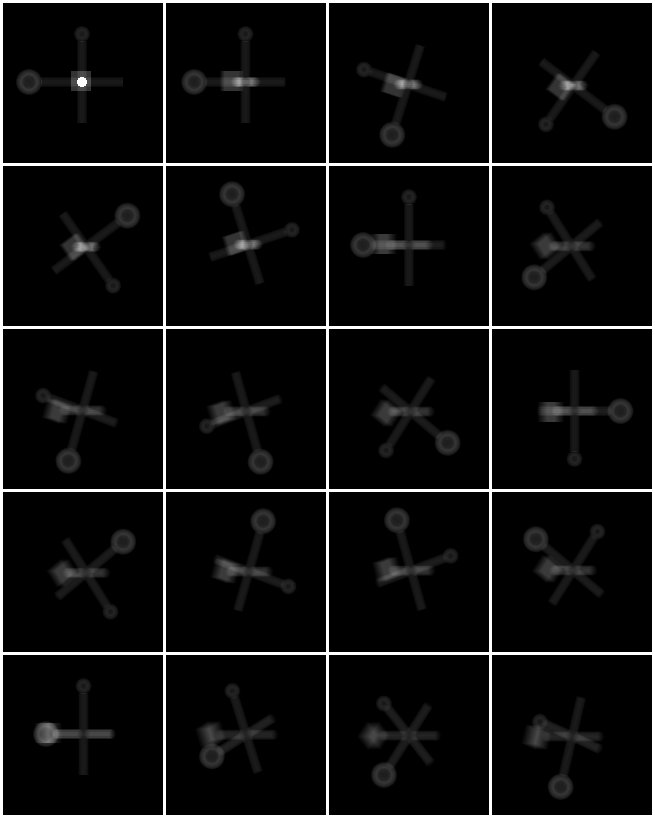

Input Images
(Showing 20 Images from 84)


Input Angles doc file (partial)
; tst/tst 14-JAN-2013AT 6:21 angles.dat
; KEY PHI, THETA, PSI
1 3 0.0000 0.0000    0.00
2 3 0.0000 2.0000    0.00
3 3 0.0000 2.0000    71.98
4 3 0.0000 2.0000    143.96
5 3 0.0000 2.0000    215.94
6 3 0.0000 2.0000    287.92
7 3 0.0000 4.0000    0.00
8 3 0.0000 4.0000    32.71
9 3 0.0000 4.0000    65.43
10 3 0.0000 4.0000    98.15
11 3 0.0000 4.0000    130.87
12 3 0.0000 4.0000    163.59
13 3 0.0000 4.0000    196.31
14 3 0.0000 4.0000    229.03
15 3 0.0000 4.0000    261.75
16 3 0.0000 4.0000    294.46
17 3 0.0000 4.0000    327.18
18 3 0.0000 6.0000    0.00
19 3 0.0000 6.0000    21.17
20 3 0.0000 6.0000    42.34


Output volume
(Surface view)
bp3n_surf
