.OPERATION: | BP S2 | ; Back Projection - 2D, single tilt, iterative, constrained |
.TEMPLATE FOR IMAGE FILES: | sav_bps2_proj@** | ; Projection files (input) |

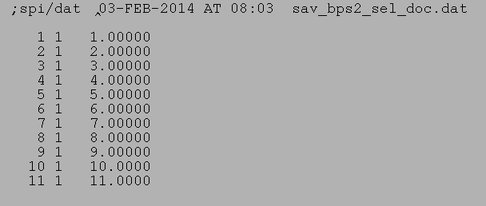

.SELECTION DOC. FILE: | sav_bps2_sel_doc | ; List of images (input) |
.ANGLES DOC FILE: | sav_bpw2_ang_doc | ; Projection angles doc file (input) |
.RADIUS OF RECONSTRUCTED OBJECT, SLICE HEIGHT: | 78, 160 | ; Radius and height |
.RECONSTRUCTION RANGE IN Y: | 1, 160 | ; Y range |

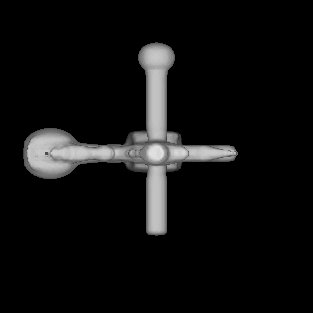

.RECONSTRUCTED VOLUME FILE: | bps2 | ; Volume (output) |
.LAMBDA, CORRECTION LIMIT: | 1.0e-4, 0 | ; Lambda, correction limit |
.ITERATION LIMIT, NUMBER OF INTERNAL STEPS: | 10,5 | ; Iterations, internal steps |
.CONSTRAINT MODE: | 8 | ; Constraint mode |
.MINIMUM, MAXIMUM CONSTRAINTS: | 1,255 | ; Minimum & maximum |
.SMOOTHING CONSTANT: | 0.5 | ; Smoothing constant |
