Usage Example - Operation: 'CL SM'

Correspondence Analysis - Show Map & Eigen Values

Procedure used: casm.spi

.OPERATION: CA SM ;   Make map
.IMAGE OR PIXEL COORDINATES (I/M): I ;   Image coordinates
.COORDINATE FILE PREFIX: cas_c ;   File prefix (input)
.NO. OF HORIZONTAL PATCHES: 1 ;   Use 1 patch
.TWO FACTOR NUMBERS FOR MAP (E.G.: 1,5): 1,2 ;   Factors
.SYMBOL, ASSIGN SYMBOL, CLASS, DOC, ID (S/A/C/D/I): S ;   Use symbol
.NUMBER OF SD OR <CR>=2.3: 2.00 ;   SD
.1=FLIP #1/ 2=FLIP #2/ 3=FLIP 1+2/ <CR>=NO FLIP:<CR>: <CR> ;   No flip
.POSTSCRIPT OUTPUT FILE: casm_map_2vs1 ;   Map file (output)
.TEXT SIZE FOR AXIS AND DATA (USE <CR> FOR DEFAULT = 10,9): <CR> ;   Use default
.ENTER X AXIS OFFSET <CR> ;   Use default
.ENTER NEW LOWER, UPPER AXIS BOUNDS OR <CR>: <CR> ;   Use default
.ENTER NEW AXIS LABEL UNIT AND TICKS / LABEL OR <CR>: <CR> ;   Use default
.ENTER LABEL NO. TO EDIT...OR <CR> TO CONTINUE: <CR> ;   Use default
.ENTER Y AXIS OFFSET: <CR> ;   Use default
.ENTER NEW LOWER, UPPER AXIS BOUNDS OR <CR>: <CR> ;   Use default
.ENTER NEW AXIS LABEL UNIT AND TICKS / LABEL OR <CR>: <CR> ;   Use default
.ENTER LABEL NO. TO EDIT... OR <CR> TO CONTINUE: <CR> ;   Use default


See: Classification and Clustering Tutorial for further info.


ORIGINAL INPUT FILES
(Used in 'CA S')

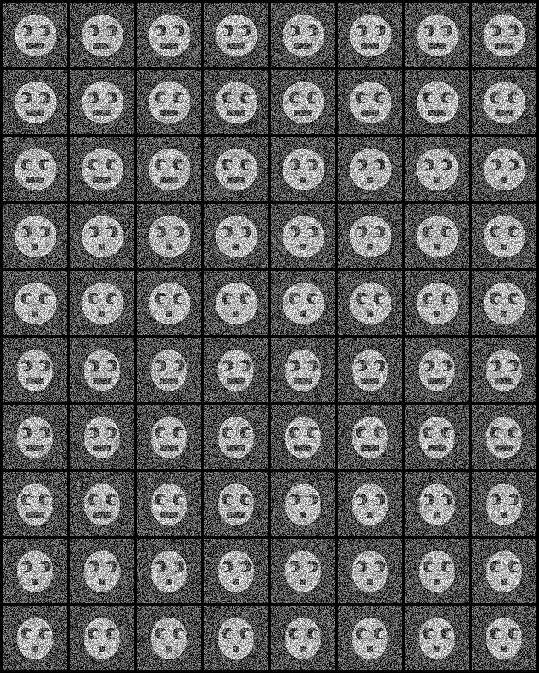

sma***

INPUT TEXT FILE
(Truncated)
cas_c_IMC

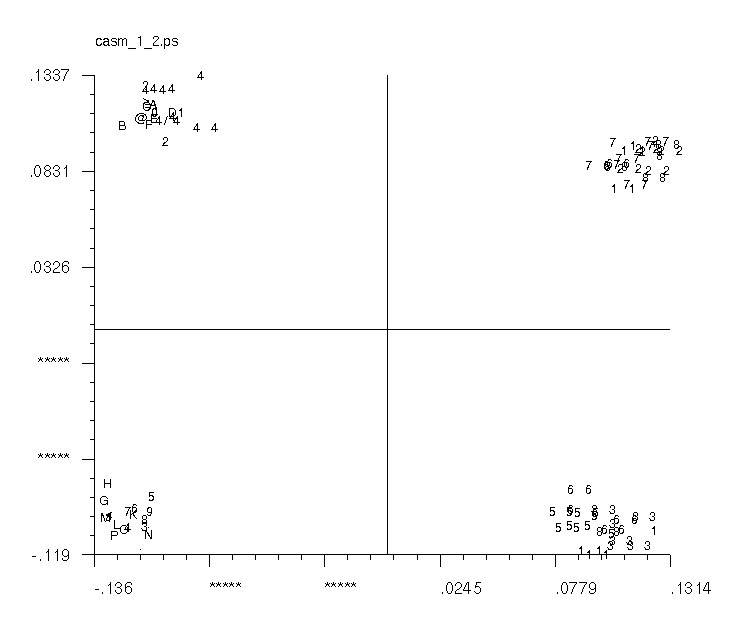

OUTPUT MAP
FACTOR 2 VS 1
casm_1_2
