Usage Example - Operation: 'FSC NEW'

Fourier shell correlation and resolution determination, optional masking

Procedure used: fscnew.spi



.OPERATION: FSC NEW [halfl],[sfl],[resl] ;   Fourier shell correlation and resolution
.FIRST INPUT VOLUME: sav_fscvol_1 ;   First volume (input)
.SECOND INPUT VOLUME: sav_fscvol_2 ;   Second volume (input)
.SHELL WIDTH (VOXEL UNITS): 2 ;   Shell size (voxels)
.VOXEL SIZE (A): 4 ;   Voxel size (A)
.INPUT MASK VOLUME: sav_fsc_mask ;   Mask volume (input)
.FSC OUTPUT DOC FILE: fscnew_doc ;   Doc file (output)
.GNUPLOT FILE: fscnew_plot.gpl ;   Plot of FSC curve (output)


(Some images resized)
FIRST INPUT VOLUME
(Surface View) 		      SECOND INPUT VOLUME
(Surface View)

sav_fscvol_1       sav_fscvol_2
FIRST INPUT VOLUME
(Surface View) 		      SECOND INPUT VOLUME
(Surface View)		 MASK VOLUME
(Central Slice)

fsc_vol1_surf       fsc_vol2_surf sav_fsc_mask_mid .jpg

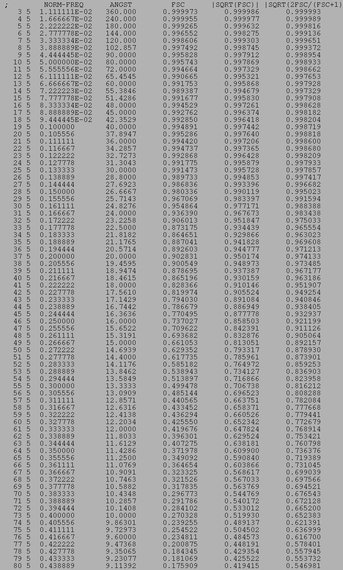

OUTPUT FSC DOC FILE

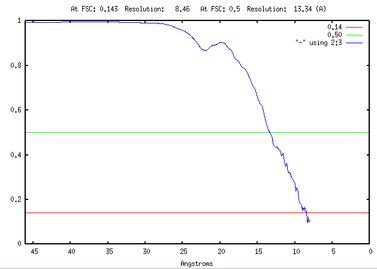

(TRUNCATED) 		OUTPUT FSC PLOT
fscnew_doc fscnew_plot.gpl
