Usage Example - Operation: 'MK 3'

Marker based alignment - double tilted images

Procedure used: mk3.spi

.OPERATION: MK 3 ;   Marker based alignment
.FIRST SERIES MARKER INPUT DOC FILE: sav_mk3_1_doc;   First series marker doc file (input )
.SECOND SERIES MARKER INPUT DOC FILE: sav_mk3_2_doc;   Second series marker doc file (input)
.CORRECTIONS OUTPUT DOC FILE: mk3_c ;   Corrections doc file (output)
.SECOND SERIES ANGULAR INPUT DOC FILE:sav_mk3_a_doc;   Second series angular doc file (input)
.CORRECTED ANGULAR OUTPUT DOC FILE: mk3_a ;   Corrected angular doc file (output)
.ALIGNMENT / ERRORS OUTPUT FILE: mk3_e ;   Alignment/errors doc file (output)

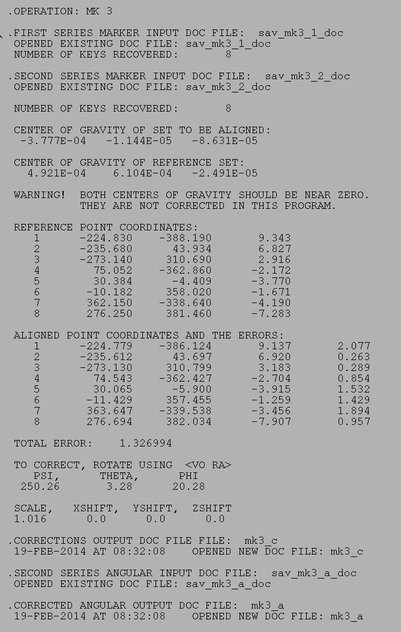

RESULTS FILE

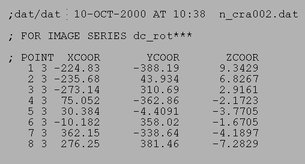

FIRST INPUT MARKER DOC FILE

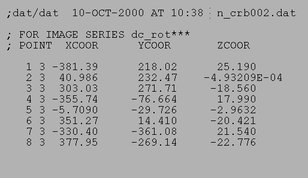

      SECOND INPUT MARKER DOC FILE

sav_mk3_1_doc       sav_mk3_2_doc

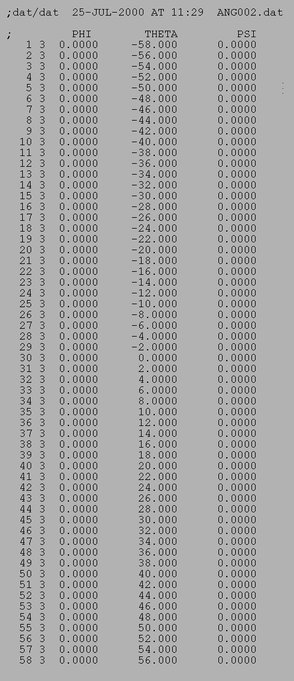

SECOND SERIES INPUT ANGULAR DOC FILE


sav_mk3_a_doc

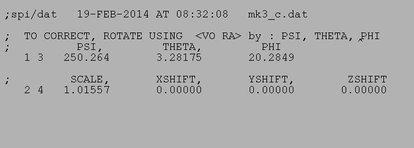

CORRECTIONS OUTPUT DOC FILE

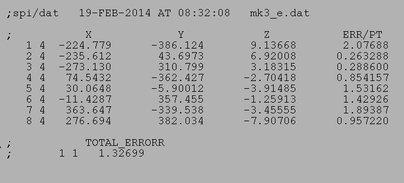

      ALIGNMENT/ERRORS OUTPUT DOC FILE

mk3_c_doc       mk3_e_doc

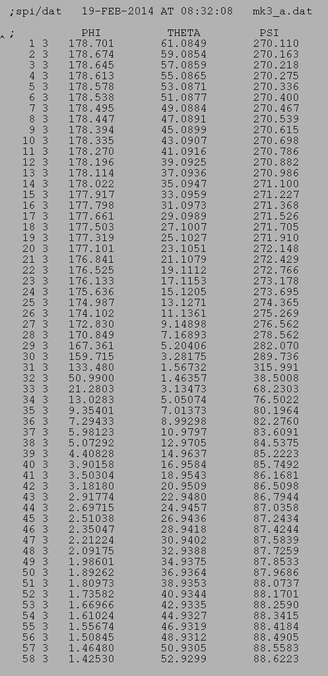

CORRECTED ANGULAR OUTPUT DOC FILE
mk3_a_doc
