Usage Example - Operation: 'MN'

Montage of images

Procedure used: mn.spi

.OPERATION: MN ;   Make montage of images
.FILE PREFIX OR TEMPLATE (EG. PIC***): sav_pj3q_vol_ax_83@** ;   Image file template (input)
.FILE NUMBERS: 1-8 ;   File numbers for montaging
.NUMBER OF IMAGES PER ROW, MARGIN WIDTH: 4, 3 ;   Images / row, margin pixels
.MARGIN VALUE: 200 ;   Margin intensity
.OUTPUT FILE: mn_pj3q_vol_ax ;   Montage file (output)


Input Images
(20 images)
-
-

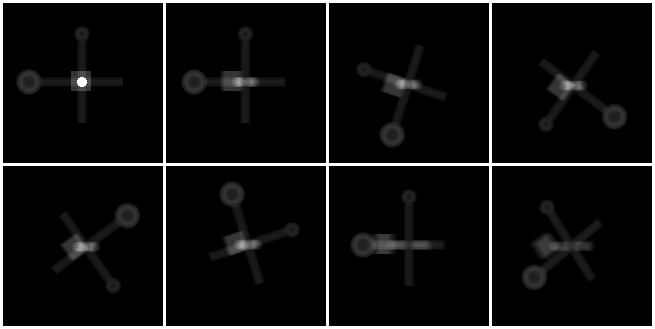

Output Montage
(This is a single image)
