Usage Example - Operation: 'OR 3Q'

ORientation search - 3D, Eulerian angles

Procedure used: or3q.spi

.OPERATION OR 3Q [phi],[the],[psi],[cc] ;   Orientation search - 3D
.REFERENCE VOLUME: sav_vol_ax_pd ;   Rotated volume (input)
.EXPERIMENTAL VOLUME: rot_vol_ax_pd ;   Experimental volume (input)
.MASK RADIUS: 70 ;   Mask radius
.CENTER OF ROTATION IN X,Y,Z: 30 30 30 ;   Rotation around 30,30,30
.INITIAL EULERIAN ANGLES; PHI,THETA,PSI: 0, 0, 0 ;   Initial Eulerian angles


INPUT REFERENCE VOLUME
(Surface) 		INPUT EXPERIMENTAL VOLUME
(Surface)
vol_ax_160_surf rot_vol_ax_160_surf

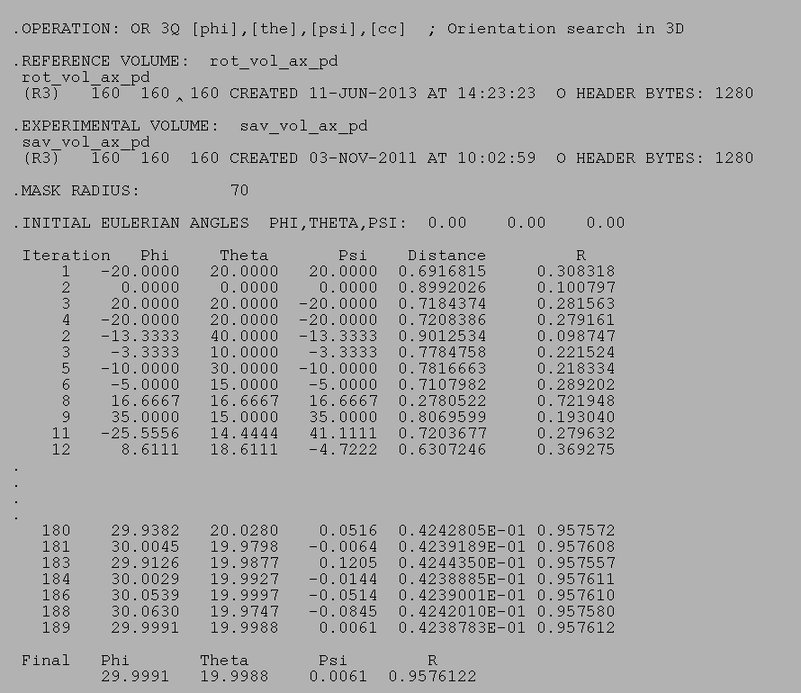

'OR 3Q' RESULTS FILE
or3q_resu
