Usage Example - Operation: 'OR Q'

Orientation Search - 2D, rotation & translation , uses self-correlation

Procedure used: orq.spi

.OPERATION: OR Q ;   ORientation Search
.TEMPLATE FOR REFERENCE IMAGE SERIES: sav_avg_*** ;   Ref. image (input)
.FILE NUMBERS OR SELECTION DOC. FILE NAME 0 ;   Reference image number
.REAL SPACE MASK RADIUS FOR THE INPUT AND REFERENCE IMAGES: 25, 25 ;   Real space mask radius for exp and ref images
.RADIUS OF ACF, MAXIMUM SHIFT: 31, 5 ;   Radius of acf, maximum shift
.CHECK MIRRORED POSITIONS? (Y/N): No ;   Do not check mirrored image
.TEMPLATE FOR IMAGE SERIES TO BE ALIGNED: sav_avg_*** ;   Experimental image (input)
.FILE NUMBERS OR SELECTION DOC. FILE NAME 315 ;   Exp. image number


Exp. Image Ref. image
sav_avg000 sav_avg_315


OUTPUT

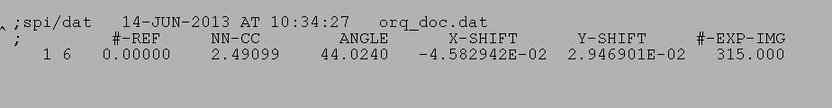

DOCUMENT FILE
orq_doc

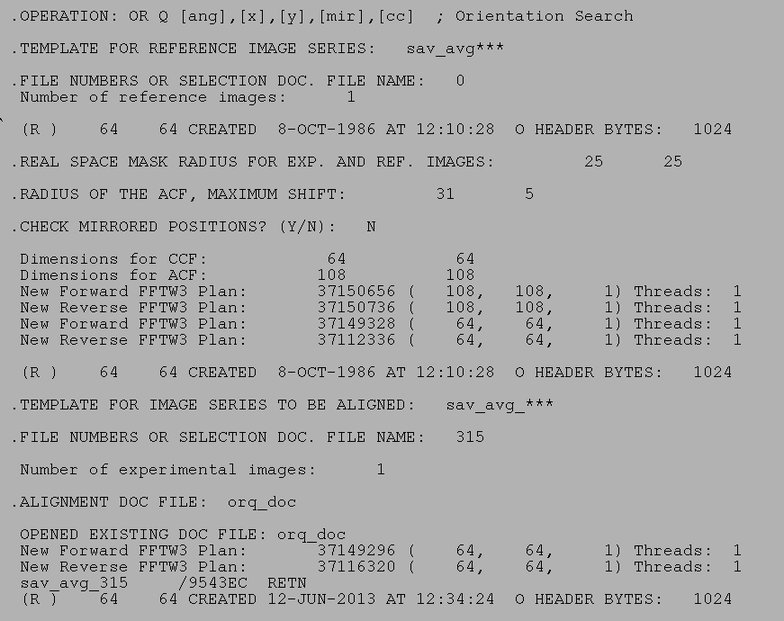

RESULTS FILE
