Usage Example - Operation: 'PDB RT3A'

PDB - Rotate around arbitrary center

Procedure used: pdbrt3.spi

.OPERATION: PDB RT3A ;   Rotate PDB volume around arbitrary center
.PDB INPUT FILE: sav_efg_vol.pdb ;   PDB file name (input)
.PDB OUTPUT FILE: pdbrt3a.pdb ;   PDB file name (output)
.PHI, THETA, PSI: 30 0 0 ;   30 degrees in PHI
.XC, YC, ZC: 100 200 300 ;   Rotation center (Angstroms) in SPIDER coordinate system

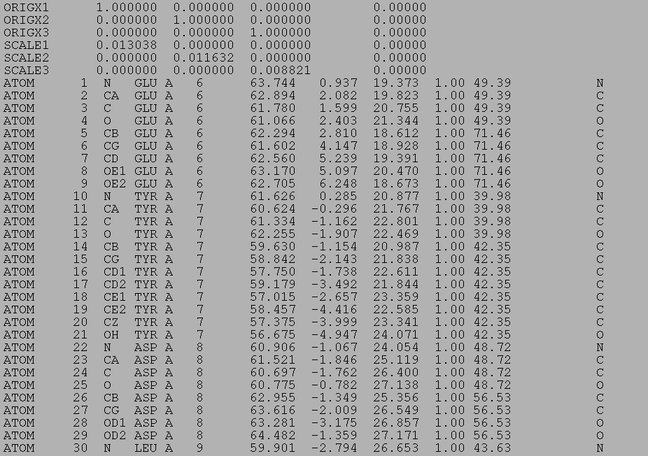

PDB INPUT FILE
(PORTION)
sav_efg_vol.pdb


PDB OUTPUT FILE
(PORTION)
pdbrt3a.pdb
