Usage Example - Operation: 'PDB RT3L'

PDB - Rotate around arbitrary line

Procedure used: pdbrt3l.spi

.OPERATION: PDB RT3L ;   PDB information
.PDB INPUT FILE: sav_efg_vol.pdb ;   PDB file name (input)
.PDB OUTPUT FILE: pdbrt3l.pdb ;   PDB file name (output)
.PHI: 30 ;   30 degrees in PHI
.X1, Y1, Z1: 100 200 100 ;   First point on rotation axis (A)
.X2, Y2, Z2: 100 200 300 ;   Second point on rotation axis (A)

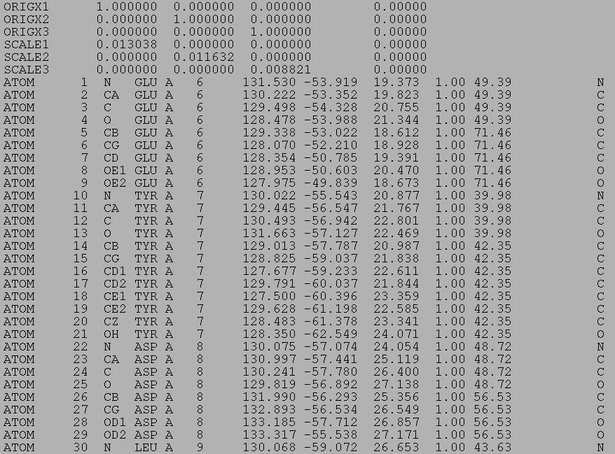

PDB INPUT FILE
(PORTION)
sav_efg_vol.pdb


PDB OUTPUT FILE
(PORTION)
pdbrt3l.pdb
