Usage Example - Operation: 'PJ 3F'

Project volume using Eulerian angles, FBS interpolation

Procedure used: pj3f.spi

.OPERATION: PJ 3F ;   Project volume
.INPUT VOLUME: sav_vol_ax_pd ;   Volume (input)
.OBJECT RADIUS: 78 ;   Radius of projection
.ANGLE NUMBERS OR SELECTION DOC. FILE NAME:1-8 ;   List of images
.ANGLES DOC FILE: sav_pj_ang_doc;   Projection angles doc file (input)
.TEMPLATE FOR 2-D PROJECTIONS: pj3f_stk@*** ;   Projection files (output)


INPUT VOLUME
(Surface view)

Input Angles doc file
; tst/tst 14-JAN-2013 AT 6:21:21 angles.dat
; KEY PHI, THETA, PSI
1 3 0.0 0.0    0.0
2 3 30.0 0.0    0.0
3 3 30.0 90.0    0.0
4 3 30.0 90.0    45.0
5 3 90.0 0.0    0.0
6 3 90.0 90.0    0.0
7 3 90.0 90.0    30.0
8 3 0.0 90.0    179.9

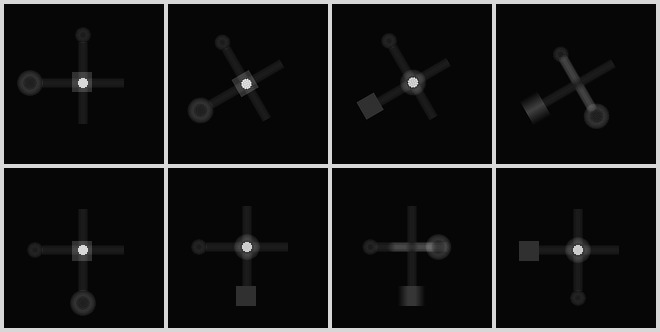

OUTPUT PROJECTION IMAGES
pj3f_stk
