Usage Example - Operation: 'PJ 3Q'

Project volume using Eulerian angles, trilinear interpolation

Procedure used: pj3q.spi

.OPERATION: PJ 3Q ;   Project volume
.INPUT VOLUME: sav_vol_ax_pd ;   Input volume
.OBJECT RADIUS: 78 ;   Radius of projection
.ANGLE NUMBERS OR SELECTION DOC. FILE NAME:1-8 ;   List of images
.ANGLES DOC FILE: sav_pj_ang_doc;   Projection angles doc file
.TEMPLATE FOR 2-D PROJECTIONS: pj3q_*** ;   Projection files


Input volume
(Surface view)
Input Angles doc file
; tst/tst 14-JAN-2013AT 1:20:23 angles.dat
; KEY PHI, THETA, PSI
1 3 0.0 0.0    0.0
2 3 30.0 0.0    0.0
3 3 30.0 90.0    0.0
4 3 30.0 90.0    45.0
5 3 90.0 0.0    0.0
6 3 90.0 90.0    0.0
7 3 90.0 90.0    30.0
8 3 0.0 90.0    179.9

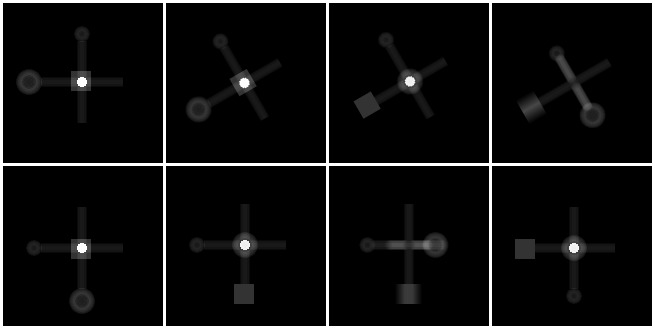

Output Projection Images
