Usage Example - Operation: 'PK 3'

Search for peak(s) in a SPIDER volume

Procedure used: pk3.spi

.OPERATION: PK 3 [x],[y],[z],[xp],[yp],[zp],[pk] ;   Search for 4 highest peaks in image
.INPUT FILE: sav_crc_vol ;   Image (input)
.NUMBER OF PEAKS, CENTER ORIGIN OVERRIDE (0/1): 4, 0 ;   Want 4 highest peaks
.MAXIMA(+) OR MINIMA(-): + ;   Find maxima
.ENTER NUMBER OF PEAKS, CENTER ORIGIN OVERRIDE (1/0): 5, 0 ;   Number of peaks, relative to center
.CENTER OF GRAVITY CALCULATION? (Y/N): No ;   No COG
.BOX SELECTION (Y/N): No ;   No box selection


INPUT VOLUME
(Slices)
sav_crc_vol

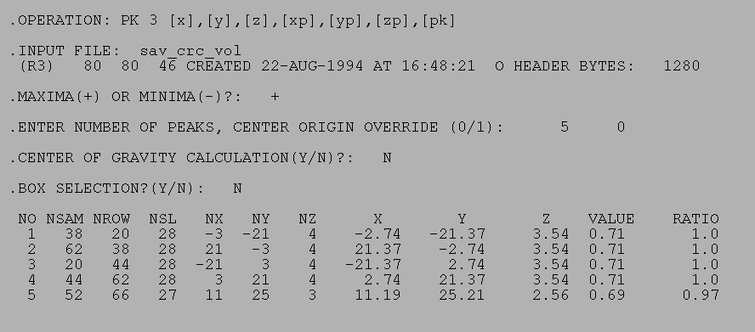

RESULTS FILE
pk3_resu
