Usage Example - Operation: 'RO SD'


Rotational Average - Single line output & doc file



Usage Example - Operation: 'RO I'


Rotational Average - Square image output



Usage Example - Operation: 'RO'


Rotational Average - Single line output


Procedure used: ro.spi

.OPERATION: RO SD ;   Rotational Average - Single line output & doc file
.INPUT FILE: sav_crc_sli_033 ;   File name (input)
.OUTPUT FILE: ro ;   File name for rot. avg. (output)
.OUTPUT DOC FILE: rosd_doc ;   File name for rot. avg. listing (output)
.
.OPERATION: RO I ;   Rotational Average - Square image output
.INPUT FILE: sav_crc_sli_033 ;   File name (input)
.OUTPUT FILE: ro ;   File name for rot. avg. (output)
.
.OPERATION: RO ;   Rotational Average - Single line output
.INPUT FILE: sav_crc_sli_033 ;   File name (input)
.OUTPUT FILE: ro ;   File name for rot. avg. (output)


'RO SD 'INPUT
IMAGE 		'RO SD 'OUTPUT
AVERAGE IMAGE
(Rows Duplicated)
sav_crc_sli_033 rosd_dup

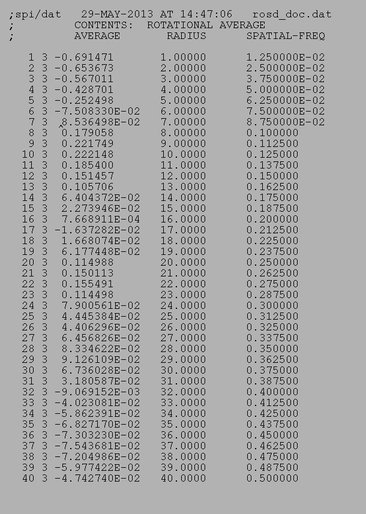

''RO SD' OUTPUT
DOCUMENT FILE
rosd_doc


'RO I' INPUT
IMAGE 		'RO I' OUTPUT
AVERAGE IMAGE
sav_crc_sli_033 roi


'RO' INPUT
IMAGE 		'RO' OUTPUT
AVERAGE IMAGE
(Rows Duplicated)
sav_crc_sli_033 ro_dup
