Usage Example - Operation: 'SA'


Sum Alignment



Usage Example - Operation: 'SA P'


Sum Alignment - Positive rotation and shift



Usage Example - Operation: 'SA 3'


Sum Alignment - 3D



Usage Example - Operation: 'SA E'


Sum Alignment - Eulerian angles


Procedure used: sa.spi

.OPERATION: SA [xo],[yo],[zo] ;   Sum Alignment
.INITIAL ROTATION ANGLE, X & Y SHIFTS: 30, 1, 2 ;   Initial rotation angle, x & y shifts
.REFINED ROTATION ANGLE, X & Y SHIFTS: 40, 3, 4 ;   Refined rotation angle, x & y shifts
. ;
.OPERATION: SA P [xo],[yo],[zo] ;   Sum alignment - Positive rotation and shift
.INITIAL ROTATION ANGLE, X & Y SHIFTS: 30, 1, 2 ;   Initial rotation angle, x & y shifts
.REFINED ROTATION ANGLE, X & Y SHIFTS: 40, 3, 4 ;   Refined rotation angle, x & y shifts
. ;
.OPERATION: SA 3 [phi],[theta],[psi],[xsh],[ysh],[zsh] ;   Sum alignment - 3D
.FIRST TRANSFORMATION ROTATION ANGLES (PHI, THETA, PSI): 356.0 34.4 67.9 ;   First transformation rotation angles
.FIRST TRANSFORMATION SHIFTS (X, Y, Z): 1.0 1.4 1.6 ;   First transformation shifts
.SECOND TRANSFORMATION ROTATION ANGLES (PHI, THETA, PSI): 16.0 14.4 17.9 ;   Second transformation rotation angles
.SECOND TRANSFORMATION SHIFTS (X, Y, Z): 1.6 3.4 6.6 ;   Second transformation shifts
. ;
.OPERATION: SA E [phi],[theta],[psi] ;   Sum Eulerian angles
.FIRST TRANSFORMATION ROTATION ANGLES (PHI, THETA, PSI): 56.0 34.4 67.9 ;   First transformation rotation angles
.SECOND TRANSFORMATION ROTATION ANGLES (PHI, THETA, PSI): 56.0 34.4 67.9 ;   Second transformation rotation angles

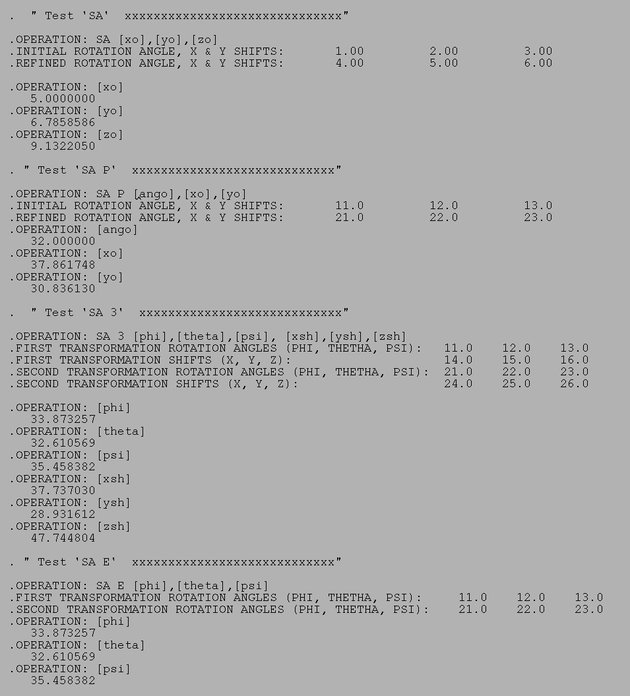

RESULTS FILE
sa_resu
