Usage Example - Scripting Operations

Scripting Operations

Procedure used: ./images/scripting.spi

.OPERATION: [n] = 5 ;   Numerical variable assignment
.OPERATION: [n] ;   List Numerical variable
.
.OPERATION: [file] = 'img000' ;   String variable assignment
.
.OPERATION: [vol] = 'vol{***[i]}' ;   String variable assignment
with numerical substitution
.
.OPERATION: IF ([n] > 20) GOTO LB77 ;   Conditional go to line labeled 77
.
.OPERATION: DO [i]=1,5 ;   Do loop
.OPERATION:     IF ([i].EQ. 1) THEN ;   Start of 'if' clause
.OPERATION:         SYS ;   System call
.OPERATION:            echo Iter: {**[i]}
.OPERATION:         CYCLE ;   Start next Loop
.OPERATION:     ELSEIF ([i].LE. 3) THEN ;   Start of 'if then' clause
.OPERATION:         SYS ;   System call
.OPERATION:            echo Iter: {**[i]} Vol: [vol]
.OPERATION:     ELSEIF ([i].LE. 4) THEN ;   Start of 'if then' clause
.OPERATION:         SYS ;   System call
.OPERATION:            echo Iter: {**[i]}
.OPERATION:         GOTO LB77 ;   Go to line labeled 77
.OPERATION:     ELSE ;   Start of 'else' clause
.OPERATION:         EXIT ;   Exit early from the Loop
.OPERATION:     ENDIF ;   End of 'else' clause
.OPERATION: ENDDO ;   End of loop
.
.OPERATION: LB 77 ;   Labeled line
.OPERATION: EN ;   End session & keep results file

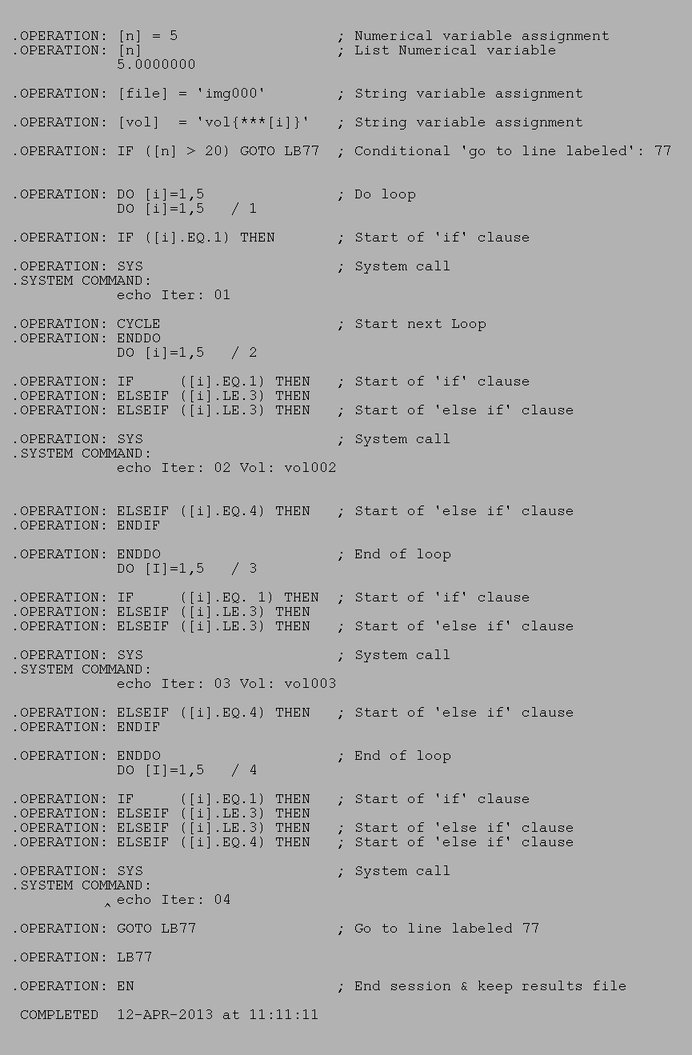

RESULTS FILE
