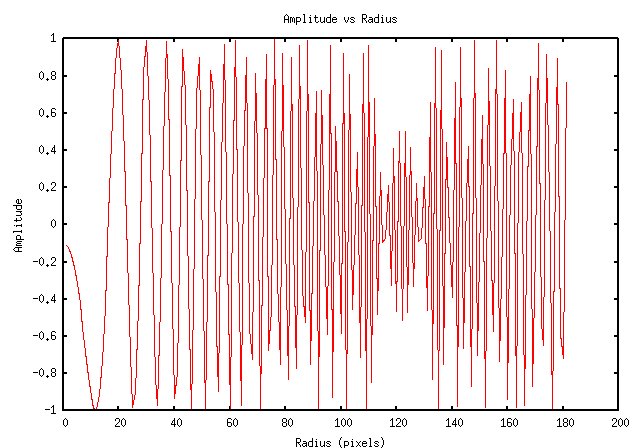

.OPERATION: | TF L | ; Generate CTF, in doc file |
.SPHERICAL ABBERATION CS [mm]: | 2.0 | ; CS |
.DEFOCUS [A], ELECTRON VOLTAGE [Kev]: | 48600, 300 | ; Defocus, electon voltage |
.NUMBER OF SPATIAL FREQUENCY POINTS: | 360 | ; Number of spatial freq. points |
.MAXIMUM SPATIAL FREQUENCY [1/A]: | 0.373 | ; Max spatial freq. |
.SOURCE SIZE [1/A], DEFOCUS SPREAD [A]: | 0.0, 0.0 | ; Source size, defocus spread |
.AMPLITUDE CONTRAST RATIO [0-1], GAUSSIAN ENVELOPE HALFWIDTH: | 0.1, 10000 | ; ACR, GEH (10000 = has no effect) |
.DIFFRACTOGRAM, ENVELOPE, OR STRAIGHT (D/E/S): | S | ; Diffractogram, Envelope, or Straight |

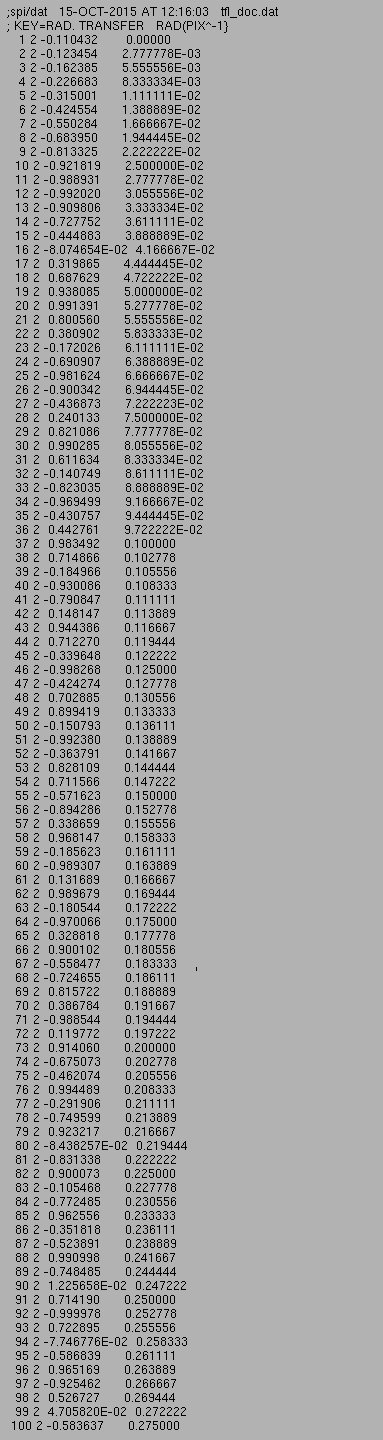

.OUTPUT DOC FILE: | tfl_doc | ; Doc file (output) |
