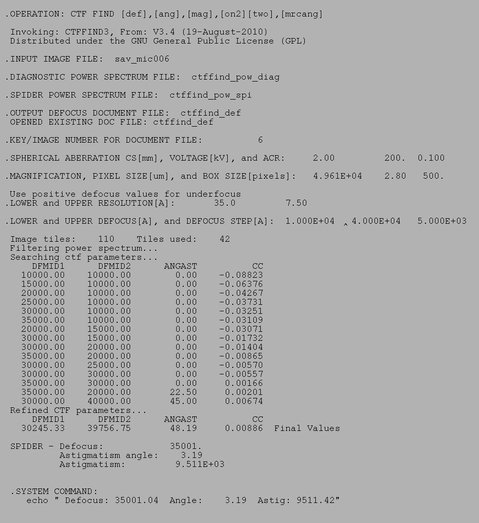

.OPERATION: | CTF FIND [def],[ang],[mag],[df1],[df2],[mrcang] | ; CTF Estimation |
.INPUT IMAGE: | sav_mic006_dc_2 | ; Micrograph image (input) |

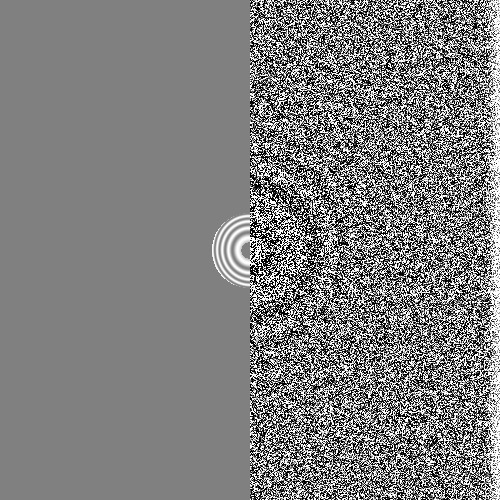

.SPIDER POWER SPECTRUM FILE: | ctffind_pow_spi | ; SPIDER power spectrum (output) |

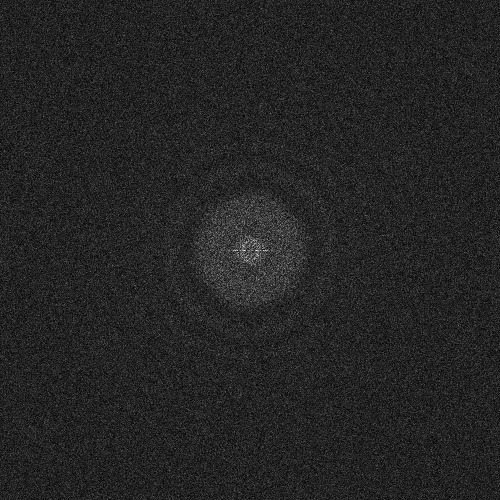

.DIAGNOSTIC POWER SPECTRUM FILE: | ctffind_pow_diag | ; Diagnostic power spectrum (output) |
.OUTPUT DEFOCUS DOC FILE: | ctffind_def | ; Defocus doc file (output) |
.KEY FOR DEFOCUS DOC FILE: | 1 | ; Key number |
.SPHERICAL ABBERATION CS[mm], VOLTAGE[kV], & ACR: | 2.0, 200, 0.1 | ; CS[mm], HT[kV], AmpCnst |
.MAGNIFICATION, PIXEL SIZE[um], & BOX SIZE[pixels]: | 50000, 14, 500 | ; XMAG, DStep[um], Box Size |
.LOWER & UPPER RESOLUTION[A]: | 35, 7.5 | ; ResMin[A], ResMax[A] |
.LOWER DEFOCUS[A], UPPER DEFOCUS[A], & DEFOCUS STEP[A]: | 10000, 40000, 5000 | ; dFMin[A], dFMax[A], FStep |
