Usage Example - Operation: 'MN S'

Montage of images- with individual Scaling

Procedure used: mns.spi

.OPERATION: MN S ;   Make montage of images - with individual Scaling
.FILE PREFIX OR TEMPLATE (EG. PIC***): sav_pj3q_vol_ax_83@** ;   Image file template (input)
.FILE NUMBERS: 1-8 ;   File numbers for montaging
.NUMBER OF IMAGES PER ROW, MARGIN WIDTH: 4, 3 ;   Images / row, margin pixels
.MARGIN VALUE: 2 ;   Margin intensity
.OUTPUT FILE: mns_pj3q_vol_ax ;   Montage file (output)

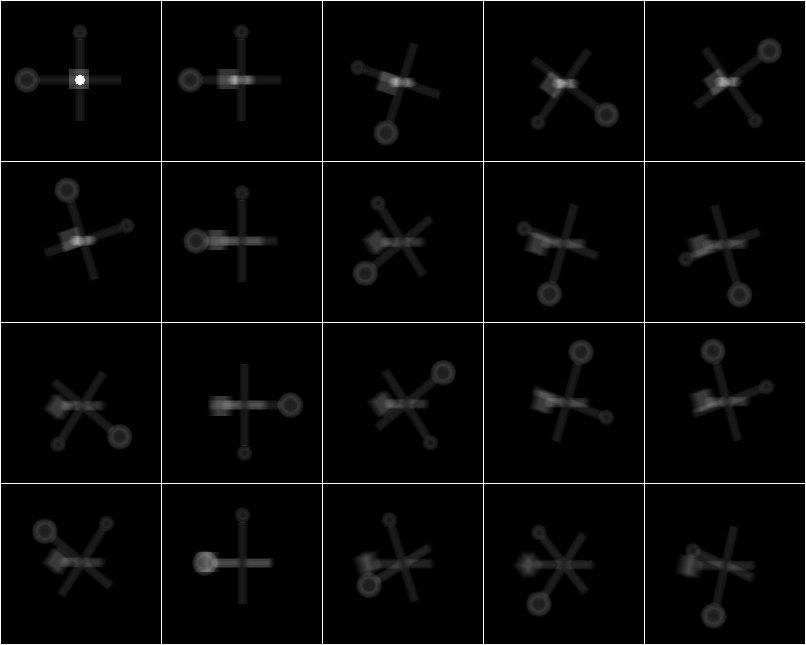

Input Images
(20 images)
-
-

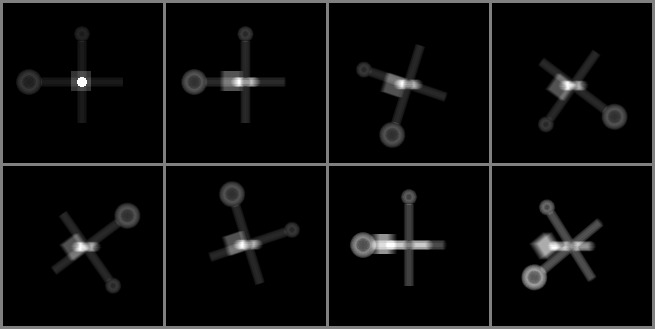

Output Montage
(This is a single image)
